I-Corp, Inc. is a technologically advanced, 70,000 square ft. machining and repair facility located on a nine-acre site in Beaumont, Texas. 19,800 square feet is climate controlled and dedicated to precision machining. The remainder is dedicated to industrial repair such as pumps, gearboxes and compressors, general machining and fabricating.

I-Corp, Inc.’s pioneering efforts in quality assurance and shop floor control have won national recognition in publications such as American Machinist, Iron Age, and Modern Machine Shop.

GENERAL QUALITY POLICY

I-Corp, Inc. is committed to providing quality products and services. We keep promised delivery dates with a competitive and fair price on products and services provided. This goal is accomplished by having a qualified, highly motivated, and quality-oriented team committed to implementing and complying to the company’s quality system and continuously improving it’s effectiveness.

WORK SPECIALTIES

  • CNC Horizontal and Vertical Machining
  • Manual Precision Machining
  • Horizontal and Vertical Pump Machining
  • Reciprocating Pump Machining
  • Steam Turbine Machining
  • Gear Box Machining
  • AutoCAD Software
  • Fabricating and Welding (All Types)
  • Plasma Cutting
  • MasterCam Computer Aided Manufacturing Software

SHOP ACCOMMODATIONS

  • 7 Cranes – 5 Tons each
  • 1 Crane – 10 Tons
  • 13 Jib Cranes
  • Hydraulic Press – Vertical & Horizontal
  • Maximum Door Width 14’0”; Height 15’6”
  • Fully Stocked Tool Room
  • Fleet of ½ Ton to 5 Ton Delivery Trucks

BASIC CAPABILITIES

Turn 1/4″ to 70″ Diameter – Length over Bedway through 26’ 3”
Mill All types. Weights to 20,000 lbs.
Saw Production Saw – Maximum Diameter 20-7/8”
Drill 0.040″ to 4″ Radial Throat Depth 60″
Grinding Surface – 12″ x 24″ x 14″
O.D. – 8″ x 36″
Keyways Any Width – Length
Welding MIG, TIG, Arc, Gas
Field Machining Milling, Boring, Flange Facing, Keyways, Pipe Part off & Beveling, Laser Alignment/Measurement/Leveling
Misc. Balancing

BASIC EQUIPMENT

Turning
CNC Lathes 10
Manual Lathes 10
Turret Lathes 6
Vertical Turret Lathes 3

Milling
CNC Vertical Mills 4
CNC Horizontal Mills 1
Manual Vertical Mills 11
Manual Horizontal Mills 7

Drilling
Radial Arm Drills 2

Saws
Saws 4 (3 with Bar Feed)
Vertical Band Saws 1

Welding
GMAW 13
SMAW 8
GTAW (TIG) 3
Plasma Cutting 3
Iron Worker 1

Turning, CNC

DAEWOO Puma 400–2006 with Fanuc 21i-TB Control

Maximum Swing 31.75”
Maximum Longitudinal Travel 41.5”
Power to Spindle 50 HP
Hole Through Spindle 6.5”
Maximum Spindle Speed 1500 RPM

DAEWOO Puma 400–2006 with Fanuc 21i-TB Control

Maximum Swing 31.75”
Maximum Longitudinal Travel 41.5”
Power to Spindle 50 HP
Hole Through Spindle 6.5”
Maximum Spindle Speed 1500 RPM

FEMCO HL-55 CNC Lathe With Fanuc Oi-TC Control

Maximum Swing 24.4″
Maximum Longitudinal Travel 31.4″
Power to Spindle 30 HP
Hole through Spindle 3.06″
Maximum Spindle Speed 2450 RPM

FEMCO HL-55 CNC Lathe With Fanuc OT-C Control

Maximum Swing 24.4″
Maximum Longitudinal Travel 31.4″
Power to Spindle 30 HP
Hole Through Spindle 3.06″
Maximum Spindle Speed 2500 RPM

FEMCO WVL-12 CNC Vertical Lathe with Fanuc 18 T Control

8 Position Automatic Tool Changer
Maximum Swing 60″
Table 48″
Power To Spindle 60HP
Maximum Table Load 10,000 lbs
Maximum Turning Height 42″

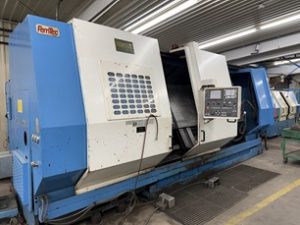

FEMTEC FL-75/120D CNC Lathe With Fanuc 18T-C Controller

Maximum Swing 35”
Maximum Longitudinal Travel 100.8”
Power to Spindle 50 HP
Hole Through Spindle 8.05”
Maximum Spindle Speed 750 RPM

HWACHEON HI-ECO 31A CNC Lathe With Fanuc OT Controller

Maximum Swing 20.5”
Maximum Longitudinal Travel 23.6”
Power to Spindle 20 HP
Hole through Spindle 2.75”
Maximum Spindle Speed 3200 RPM

HWACHEON HI-ECO 35 CNC Lathe With Fanuc OT Controller

Maximum Swing 25.5”
Maximum Longitudinal Travel 26”
Power to Spindle 25 HP
Hole through Spindle 3.535”
Maximum Spindle Speed 2450 RPM

KINGSTON CL-38AT-1500 CNC Lathe With Fanuc 20-T Controller

Swing Over Bedways 26”
Swing Over Cross Slide 14.5”
Maximum Longitudinal Travel 55″
Power to Spindle 20 HP
Hole Through Spindle 4.53″
Maximum Spindle Speed 2000 RPM

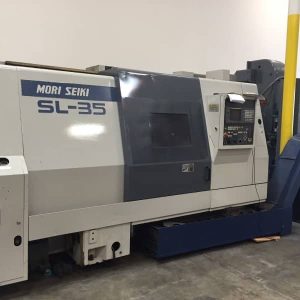

MORI SEIKI SL-35B CNC Lathe With Fanuc 0T Control

Maximum Swing 23.6″
Maximum Longitudinal Travel 30.7″
Power To Spindle 30 HP DC
Hole Through Spindle 3.580″
Maximum Spindle Speed 2500 RPM

MORI SEIKI SL-65B CNC Lathe With Fanuc 0T Control

Maximum Swing 27.5″
Maximum Longitudinal Travel 33.8″
Power To Spindle 50 HP DC
Hole Through Spindle 6.3″
Maximum Spindle Speed 1050 RPM
20” SMW Power Chuck

Turning, General

BIRMINGHAM DL40120 Engine Lathe with Newall Digital Readout

Swing Over Bedways 40”
Swing Over Cross Slide 28”
Maximum Longitudinal Travel 10′ 0″
Power To Spindle 20 HP
Hole Through Spindle 5 1/4”
Maximum Spindle Speed 1000 RPM

BULLARD 56” Vertical Turret Lathe (VTL) With Newall Digital Readout

Maximum Swing Side Head Working/Not Working 66” / 70”
Height Under Rail 48″
Chuck Size 56″
Power To Spindle 75 HP

BULLARD DYNATROL 46″ Vertical Turret Lathe (VTL) With Newall Digital Readout

Maximum Swing Side Head Working/Not Working 50″ / 58″
Height Under Rail 52″
Chuck Size 46″
Power To Spindle 60 HP

BULLARD DYNATROL 46″ Vertical Turret Lathe (VTL) With Newall Digital Readout

Maximum Swing Side Head Working/Not Working 50″ / 58″
Height Under Rail 40″
Chuck Size 46″
Power To Spindle 75 HP

KINGSTON HD2260 Engine Lathe with Digital Readout

Machines Available: 3

Swing Over Bedways 22″
Swing Over Cross Slide 13 3/8″
Maximum Longitudinal Travel 60”
Power To Spindle 10 HP
Hole Through Spindle 4″
Maximum Spindle Speed 1200 RPM

KINGSTON HR2000 Engine Lathe with Newall Digital Readout

Swing Over Bedways 34″
Swing Over Cross Slide 25″
Maximum Longitudinal Travel 6’ 7”
Power To Spindle 20 HP
Hole Through Spindle 4 1/16″
Maximum Spindle Speed 800 RPM

KINGSTON HR2000 Engine Lathe with Newall Digital Readout

Swing Over Bedways 40″
Swing Over Cross Slide 31″
Maximum Longitudinal Travel 6′ 8″
Power To Spindle 20 HP
Hole Through Spindle 4 1/16″
Maximum Spindle Speed 800 RPM

KINGSTON HR3000 Engine Lathe with Sony Digital Readout

Swing Over Bedways 34″
Swing Over Cross Slide 25″
Maximum Longitudinal Travel 9′ 10″
Power To Spindle 20 HP
Hole Through Spindle 4 1/16″
Maximum Spindle Speed 1200 RPM

KINGSTON HR4000 Engine Lathe with Newall Digital Readout

Swing Over Bedways 34″
Swing Over Cross Slide 25″
Maximum Longitudinal Travel 13′ 4″
Power To Spindle 20 HP
Hole Through Spindle 4 1/16″
Maximum Spindle Speed 800 RPM

TAKISAWA TSL-D Engine Lathe

Swing Over Bedways 14 1/8″
Swing Over Cross Slide 8 1/4″
Maximum Longitudinal Travel 40″
Power To Spindle 5 HP
Hole Through Spindle 1 3/8″
Maximum Spindle Speed 1800 RPM

TOS Engine Lathe w/ Trak Digital Readout

Swing Over Bedways 49”
Swing Over Cross Slide 37”
Maximum Longitudinal Travel 26′ 3″
Power To Spindle 35 HP
Hole Through Spindle 4″
Maximum Spindle Speed 355 RPM
Steady Rest 7 7/8” to 16 1/2” – 16” to 24 3/4”

UNIVERSAL Turret Lathe (Taiyo Seiki) with 2-Axis Newall Digital Readout

Chuck 32”
Swing Over Bedways 36”
Swing Over Cross Slide 29”
Power To Spindle 50 HP
Hole Through Spindle 10”
Spindle Speeds 20 – 530 RPM

WARNER & SWASEY #3 Turret Lathe

Chuck Size 8″
Swing Over Bedways 15 3/8″
Swing Over Cross Slide 7″
Spindle To Turret 24″
Power To Spindle 10 HP
Hole Through Spindle 1 3/4″
Spindle Speeds 45 – 2262 RPM

WARNER & SWASEY 4A-M-3550 Turret Lathe

Chuck Size 24″
Swing Over Bedways 28″
Swing Over Cross Slide 22 1/2″
Spindle To Turret 80″
Power To Spindle 75 HP
Hole Through Spindle 9 1/4″
Spindle Speeds 10 – 526 RPM

Milling, CNC

FEMCO BMC-110R CNC Horizontal Machining Center with Fanuc 18M

5-Axis Controls (4 simultaneous), Spindle Refrigeration, Rigid Tapping
Table Size 44.1” x 49.2″
Table Longitudinal Travel 47.2″
Table Cross Travel 55″
Vertical Travel 47.23″
Spindle Stroke 27.6″
Maximum Table Weight 8818 LB
Main Motor 25 HP
Spindle Size 4.33”

FEMCO MC-1400 CNC Machining Center with Fanuc 0MB Control

Automatic 30 Position Tool Changer, Spindle Refrigeration, Rigid Tapping
Table Size 26″ x 67″
Table Longitudinal Travel 55.1″
Table Cross Travel 27.6″
Vertical Travel 27.6″
Spindle Nose to Table 35.4″
Maximum Table Weight 4400 LB
Main Motor 20 HP

FEMTEC FV-60 CNC Machining Center with Fanuc 0MB 4 Axis Control

Automatic 30 Position Tool Changer, Spindle Refrigeration, Rigid Tapping
Table Size 68″x 25½”
Table Longitudinal Travel 59″
Table Cross Travel 30″
Rotary Travel 360°
Vertical Travel 27.6″
Spindle Nose to Table 35.4″
Maximum Table Weight 4400 LB
Main Motor 20 HP

KAFO VMC–15800 – Year 2005 with Fanuc 18M

4 Axis Control, Spindle Refrigeration, High Pressure through Spindle Coolant
Table Size 75” x 30″
Table Longitudinal Travel 59”
Table Cross Travel 31”
Vertical Travel 32”
Rotary Table 360°
Spindle Nose to Table 35”
Maximum Table Weight 4400 LB
Main Motor 8000RPM/20 HP

KAO MING KMC-1500V CNC Machining Center with Fanuc 18M Control

Table Size 67” x 31″
Table Longitudinal Travel 60″
Table Cross Travel 33.25″
Vertical Travel 31.5″
Spindle Nose to Table 39″
Maximum Table Weight 4840 LB
Main Motor 20 HP

Milling, Vertical

HECKERT FSS 450/E Vertical Mill with Bausch & Lomb Digital Readout In X/Y/Z Axes

Table Size 18” x 70″
Table Longitudinal Travel 52″
Table Cross Travel 14″
Vertical Travel of Knee 24.75”
Maximum Table Weight 3300 LBS
Main Motor 20 HP

PROMILL PM-2V Vertical Mill with Sony Digital Readout in X/Y Axes

Table Size 9” x 42”
Longitudinal Travel 26”
Table Cross Travel 12”
Vertical Travel 16”
Main Motor 3 HP

PROMILL PM-5V Vertical Mill with Newall Digital Readout in X/Y/Z Axes

Machines Available: 4

Table Size 10” x 54”
Table Longitudinal Travel 34.5”
Table Cross Travel 14.75”
Vertical Travel 16”
Main Motor 5 HP

SHARP KMA-2 Vertical Mill with Newall DP7 Digital Readout in X/Y/Z Axes

Machines Available: 3

Table Size 18” x 75”
Table Longitudinal Travel 47.25”
Table Cross Travel 17.6875”
Vertical Travel of Knee 21.625”
Main Motor 15 HP

SHARP KMA-3 Year 2007

Table Size 87” x 20”
Table Longitudinal Travel 59”
Table Cross Travel 24”
Vertical Travel of Knee 31.5”
Main Motor 20 HP

SHARP TMV-1 Year 2010 with 4-Axis Newall Digital Readout

Machines Available: 2

Table Size 10” x 50”
Table Longitudinal Travel 34.5”
Table Cross Travel 17.5”
Vertical Travel of Knee 14.5″
Main Motor 5HP

Milling, Horizontal

HITACHI Horizontal Mill With Vertical Head with Bausch & Lomb Digital Readout In X/Y/Z Axes

Table Size 63″ x 14″
Table Longitudinal Travel 33.9″
Table Cross Travel 14″
Vertical Travel 19″
Main Motor 20 HP

ROOSKY with Sony Digital Readout

Table Size 15.75” x 67”
Table Longitudinal Travel 40”
Table Cross Travel 16”
Vertical Travel of Knee 15”
Main Motor 15 HP

UNION 3-1/2″ Horizontal Boring Mill with Newall Digital Readout In X/Y/Z Axes

Table Size
(Complete Rotation W/Optics)		 44″ x 39.37″
Table Cross Travel 39″
Head Stock Vertical Travel 39″
Maximum Table Weight 5000 LBS
Main Motor 15 HP

UNION 3-1/8″ Horizontal Boring Mill with Newall Digital Readout In X/Y/Z Axes

Table Size
(Complete Rotation W/Optics)		 49″ x 55.5″
Table Cross Travel 63″
Head Stock Vertical Travel 39″
Maximum Table Weight 5500 LBS
Main Motor 10 HP

UNION 4″ Horizontal Boring Mill with Newall Digital Readout In X/Y/Z Axes

Table Size
(Complete Rotation W/Optics)		 49″ x 55.5″
Table Cross Travel 63″
Head Stock Vertical Travel 49″
Maximum Table Weight 6700 LBS
Main Motor 15 HP

VANGUARD 5” Horizontal Mill with 4 Axis Newall Digital Readout

Machines Available: 2

Table Size
(Complete Rotation W/Optics)		 70” x 63”
Table Cross Travel 78.74”
Head Stock Vertical Travel 70.8”
Maximum Table Weight 22,046 LBS
Main Motor 11 HP
Spindle 5.11”
Spindle Travel (Quill) 39.37”

Drilling

IKEDA Radial Drill

Machines Available: 2

Maximum Height Under Spindle 48″
Throat Depth 60″
Table Size 32″ x 60″
Motor 7½ HP

Sawing

AMADA HA-250 Horizontal Band Saw with Bar Feed

Fully Automatic
Capacity 10″ Diameter
JOHNSON AMADA H450 HD Horizontal Band Saw

Capacity 18″ x 24″
Marvel Series 8 Mark II – Vertical Band Saw

Capacity 18″ x 24″
Velox VX-530 Dual Column NC Automatic Saw

Machines Available: 2

Numerical Control
Capacity 20-7/8” Diameter

MIG Welding (GMAW)

Miller Deltaweld 451





Miller Millermatic 250

Machines Available: 3

Miller Millermatic 251

Machines Available: 5

Miller Millermatic 252

Machines Available: 4

Miller Millermatic 350

Machines Available: 8

ARC Welding (SMAW)

Miller Bobcat 225 Welder/Generator





Miller Bobcat 250 Welder/Generator





Miller Dialarc 250



Machines Available: 3

Miller Heliwelder





Miller SRH 333





Miller Thunderbolt AC/DC





HeliArc / ARC (SMAW) / TIG(GTAW) Welding

Miller Syncrowave 250



Machines Available: 2

Miller Syncrowave 350 LX



Plasma Cutting



Hypertherm Powermax 1650







Miller Spectrum 750







Miller SRH-503 ARC Gouger





Miscellaneous Equipment

FLEX ARM GHR-30 Tapping Machine

Capacity #6 to 1-1/4”



GRISETTI RT/A 800 Hydraulic Toolroom Grinder

Maximum Diameter 8″
Maximum Length 36″



MITUTOYO CRYSTA-Apex S 9106 Coordinate Measuring Machine

Probe Head Renishaw PH10MQ Scanning System
Software MCOSMOS GeoPack Programming System
Table Size 35.5”W x 39.37”L x 23.62″H
Distance Under Probe 23.62”



MITUTOYO Optical Comparator with Digital Readout (Profile Projector)

x10 120 Magnification
X Axis 6.3 ±0.0001
Y Axis 4.4 ±0.0001
Angular Degrees and Minutes



MORRISON Keyseater / PRATT WHITNEY Vertical Shaper

Keyway Range (width) 1/16″ to Any Width
Maximum Length Keyseater 9”
Shaper 12″
Maximum Part Size 25½” O.D. x 18” Lg



OKAMOTO Surface Grinder

Automatic, Longitudinal, Cross and Vertical Feeds
Maximum Width 12″
Maximum Length 24″
Maximum Height 14″



PIRAHNA P-50 Iron Worker

Maximum Punch 13/16″ through 3/4″
Maximum Plate Shear 5/8” X 14″
Maximum Angle Shear 5″ X 5″ X 3/8″
HP 10



WILTON UTM 250 Tapping Machine

Capacity Mild Steel – 5/8”
Aluminum – 1″
